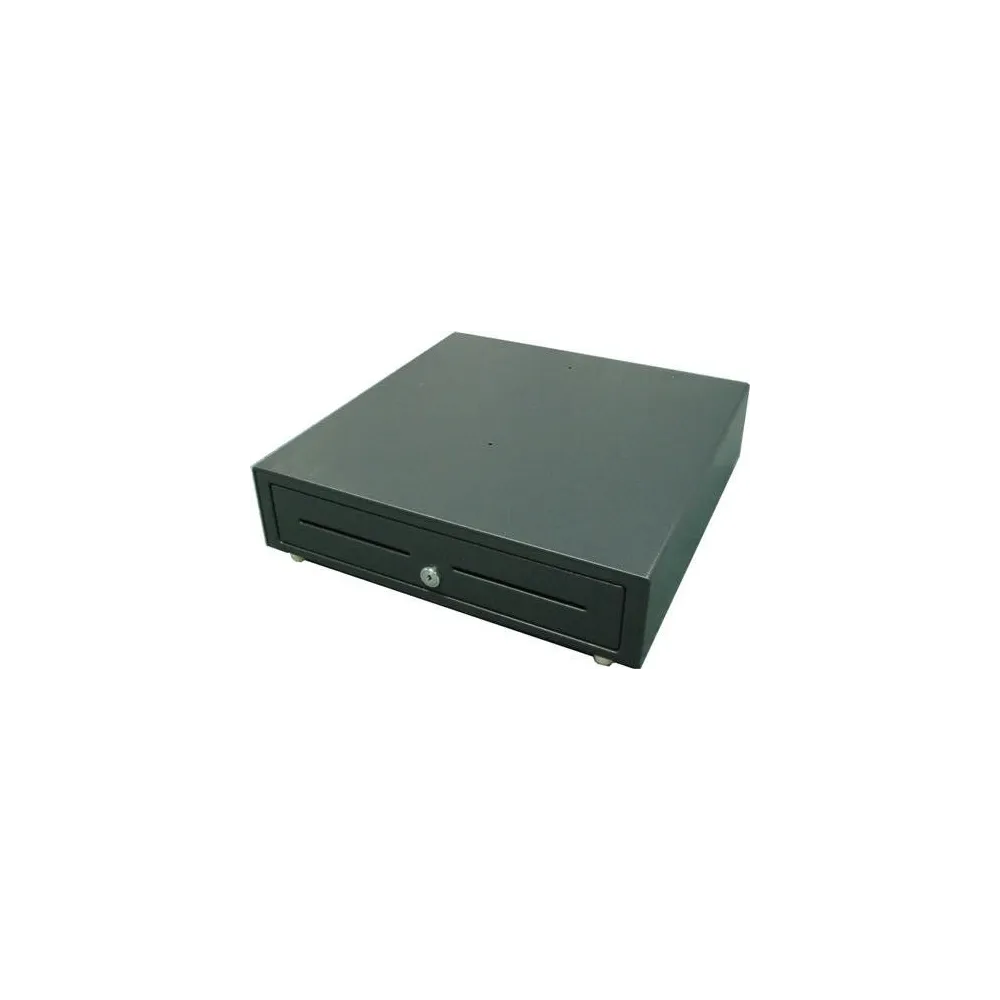

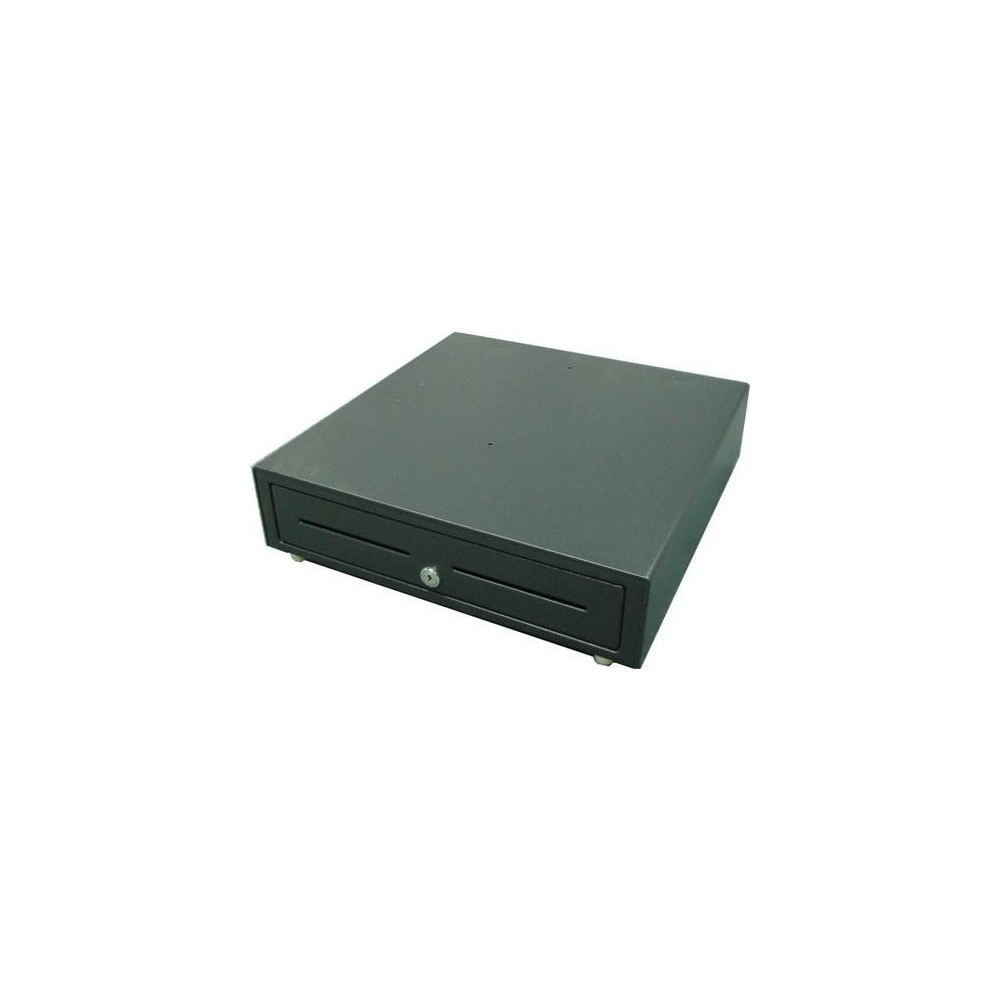

Large Passive Cash Drawer EC-410

The EC-410 drawer is available in versions for:

• PS3000 cash registers (cable terminated with an HU2 plug)
• DELIO, QUARTO printers (cable terminated with a "male" DB9 plug)
• HD E, BONO E, NEXT, Soleo Lan E, Sento LAN E printers (cable terminated with an RJ6 plug)

Additional information:

• Coil resistance: approx. 12-13 Ohm
• Trigger voltage: 12 - 24V
• Dimensions:
  • width - 410 mm
  • depth - 417 mm
  • height - 100 mm (110 mm with feet)
• (EC410, 302-086)
• Weight: 6.20 kg
• Insert: 5 banknote compartments and 8 coin compartments.
• Coin insert - removable, with additional storage space underneath for banknotes, documents, etc.

The width of the banknote compartments can be adjusted. Three-position lock (drawer opening, electromagnetic opening, locking) with a key - two keys included. A (double) slot for inserting checks, vouchers, and coupons without opening the drawer. Emergency opening option (lever located underneath the drawer).
